Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth

1
MOQ
negotiable
মূল্য
Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth
বৈশিষ্ট্য গ্যালারী পণ্যের বর্ণনা উদ্ধৃতির জন্য আবেদন
বৈশিষ্ট্য
বিশেষ উল্লেখ
নাম: সম্পূর্ণ হাইড্রোলিক ক্রলার টাইপ ড্রিল/ড্রিলিং রিগ বোরহোল ড্রিলিং সরঞ্জাম 350 মিটার গভীরতা
কীওয়ার্ড: ওয়াটার ওয়েল ড্রিল/ড্রিলিং রিগ
গভীরতা: 350M
তুরপুন ব্যাস: 105-325 মিমি
বায়ুচাপ: 1.25-3.5Mpa
রড দৈর্ঘ্য: 3মি/6মি
ড্রিল রড দিয়া।: 76/89/102 মিমি
উত্তোলন শক্তি: 26টি
রিগের ওজন: 8.5T
মাত্রা: 5.9mx 1.8mx 2.3m
মৌলিক তথ্য
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: Glorytek
সাক্ষ্যদান: CE
মডেল নম্বার: GL350S
প্রদান
প্যাকেজিং বিবরণ: স্ট্যান্ডার্ড এক্সপোর্টিং প্যাকিং
ডেলিভারি সময়: 20 দিন
পরিশোধের শর্ত: টি/টি, এল/সি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম, ডি/পি, ডি/এ
যোগানের ক্ষমতা: 40 সেট/মাস
পণ্যের বর্ণনা

GL350S Fully Hydraulic Crawler Type Borehole Drill Rig

Description:

The GL350S water well drilling rig has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate.

nce launched, it has been recognized by the market and has been widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields.

It is capable of walking on different kinds of roads and easy to move.The stainless steel track is reinforced and the climbing ability is stronger.



Tehnical Parameter:





Technical Parameter
Max drilling depth 350m
Drilling diameter 105-325mm
Air pressure 1.25-3.5Mpa
Air consumption 16-55m³/min
Rod length 3m/6m
Rod diameter 76/89/102mm
Main shaft pressure 6T
Lifting force 26T
Fast lifting speed 24m/min
Fast forwarding speed 50m/min
Rotary torque 9900 N.M
Rotary speed 30/170r/min
Winch lifting force 1.5T
High leg stroke 1.5m
Drilling efficiency 10-35m/h
Moving speed 2.5Km/h
Uphill angle 21°
Weight of the rig 8.5T
Dimension 5.9m x 1.8m x 2.3m
Working condition loose layer or bedding rock
Drilling method

Top Hammer Hydraulic Rotating and feeding,

Down the hole hammer or mud pump drilling

Suitable hammer Medium and high pressure DTH hammer
Optional accessories Mud pump, centrifugal pump, generator, foam pump
Diesel Engine 90KW

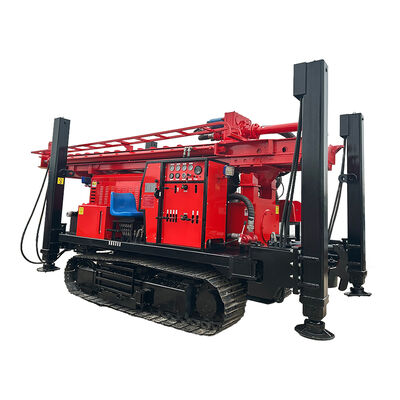

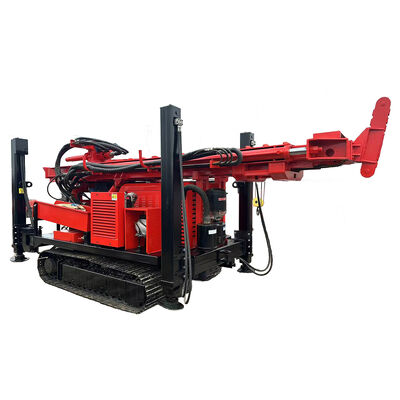

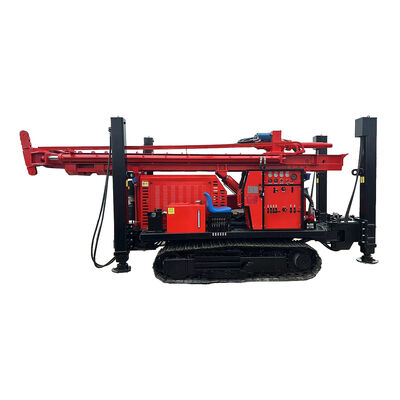

Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 0Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 1Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 2



Company Profile



Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 3

Glorytek Industry (Beijing)Co.,Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 4



We have attended many exhibitions to showcase our products.



Fully Hydraulic Crawler Type Drill/Drilling Rig Borehole Drilling Equipment 350m Depth 5
