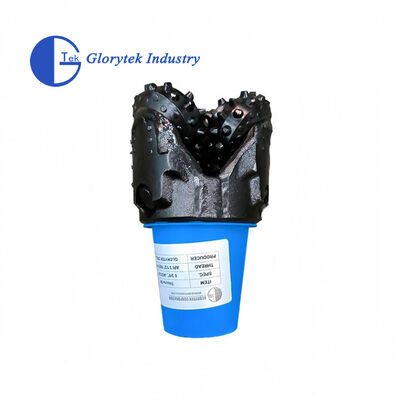

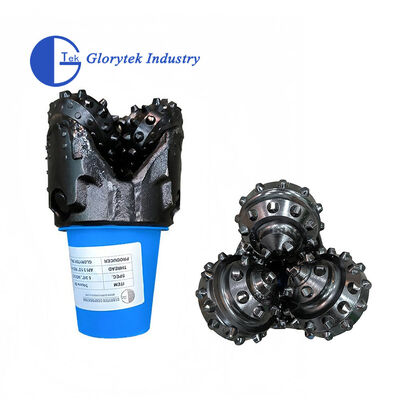

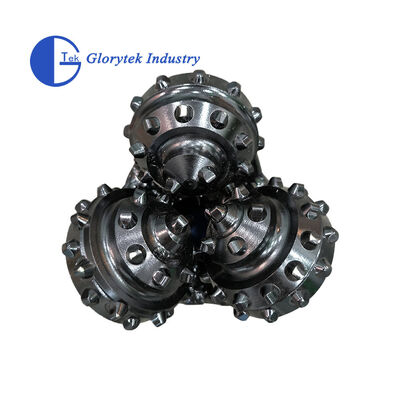

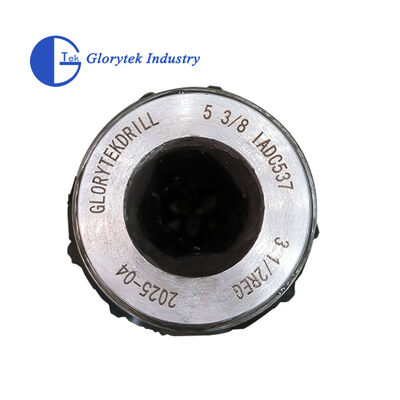

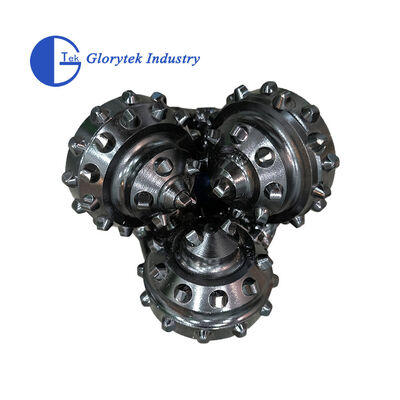

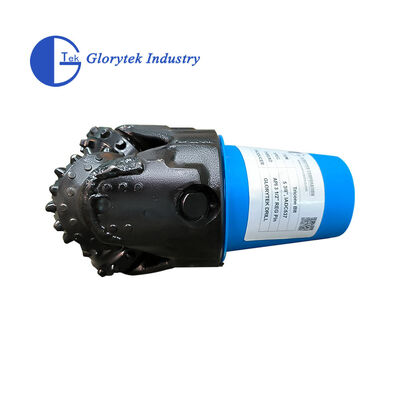

China Manufacturer 5 3/8" IADC 537 TCI Tricone Rock Roller Drill Bit for Water Well Drilling

Tricone bit is mainly used in oil well,water well, coalbed methane and geothermal well drilling engineering.
Glorytek tricone bits are designed and manufactured according to the standard of oil drilling bit, which are long life, high drilling efficiency and low
operation cost. At present, sizes ranging from 3 7/8 " to 26" have been developed, which can be applied to different formations from soft to very hard.Those designs are compatible with different drilling technologies such as conventional drilling and directional drilling.

The roller bit is a widely used drilling tool that features alternating cutting teeth contact with the well bottom, resulting in small rock breaking torque and high specific pressure for efficient penetration into various formations.

• Oil-storage sealed sliding or rolling bearing system with jet-type three-cone design
• Optimized tooth arrangement with different tooth shapes and heights for various rock formations
• Enhanced diameter protection performance with anti-friction alloy bearing system
• Silver-plated, precision processed components for anti-bite and high load-bearing capacity
• High-toughness carbide teeth with optimized design parameters
• Widely used in oil, gas field exploitation, and geological drilling applications

• Alternating cutting teeth contact reduces rock breaking torque
• Small contact area with well bottom creates high specific pressure
• Easy penetration into various geological formations
• Extended working edge length reduces wear
• Adaptable to formations ranging from soft to hard

Glorytek Industry (Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years of experience. Supported by an experienced R&D team and engineers, we successfully complete projects according to client requirements.

Our manufacturing facility covers 250,000 square meters with 150,000 square meters of construction area. We operate over 200 sets of machining machinery, CNC processing centers, friction welding machines, and testing equipment, employing more than 600 professionals. Our products are exported to over 60 countries worldwide.
