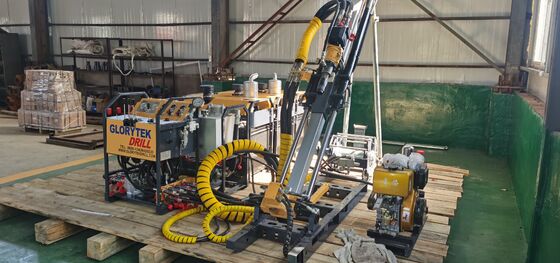

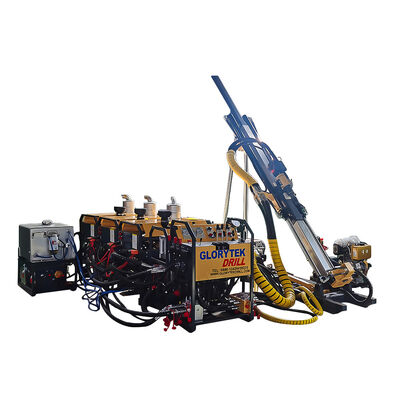

GL300 Portable Diamond Core Drill Rig For Mountain Rock Drilling
![]()
GL300 series are representative models of portable core drilling rigs, suitable for drilling shallow and medium-deep holes.
The main structure of the lightweight core drilling rig is made of high-strength aluminum alloy material, which greatly reduces the weight of the machine while ensuring the strength and toughness. The maximum module weight is only 180Kg, which is convenient for manual handling on site.
| Drilling capacity | BTW(60) | NTW(75) | HTW(95) | PQ(114) |
| 300m | 200m | 100m | / |
| Dynamic System | Engine Model | Kubota V1505 - T / Chinese Engine |
| Electric Motor Model | Stepless Speed Regulating Servo Motor | |
| Rated Power | 33Kw x1 / 30kw x 1 | |
| Rated Speed | 3000 Rpm / 2000 Rpm | |
| Hydraulic System | Control Form | Multi-pump combined flow and constant flow distribution system |
| System Pressure | 210 Bar | |
| Max Flow Rate | 65 L/Min | |
| Cooling | Water Cooling | |
| Hydraulic Tank Capacity | 60L | |
| Rotary System | Drive Mode | Full hydraulic Top Drive Power Head |
| Max Sped | 1200 Rpm | |
| Max Torque | 800 N.m | |
| Feed System | Drilling Angle | 45-90°(Can Be Customized0-90°) |
| Cylinder Stroke | 1.83m | |
| Lifting Power | 60kn | |
| Feed Force | 30kn | |
| Flush Pump | Drive Mode | Air cooled diesel engine drive |
| Max Output Flow | 120L/Min | |
| Max Pressure | 50 Bar | |
| Rod Clamp | Clamping Method | Hydraulic Rod clamp |
| Drive Mode | Hydraulically Open And Close | |
| Max Through-Hole Diameter | 130mm | |
| Wire-line Hoist | Drive Mode | Hydraulic Motor |
| Rope capacity | 400m/5mm | |
| Maximum lifting force | 7.5kn |

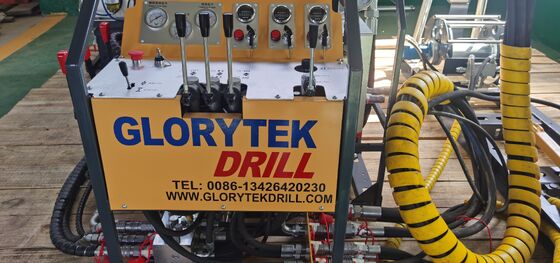

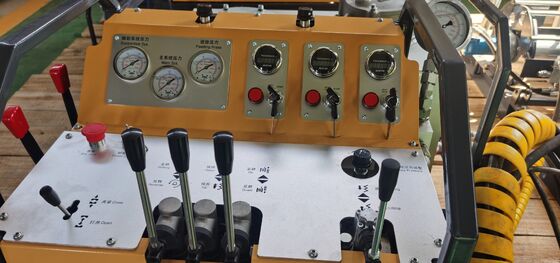

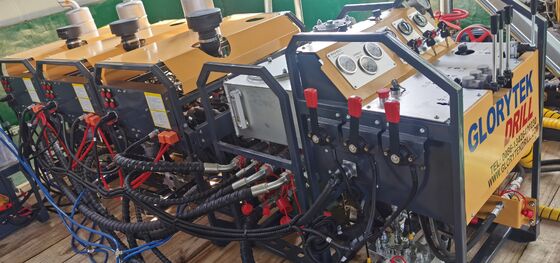

1. The portable drilling rig adopts the power system integrated control technology, and realizes the control of all engines on the console;

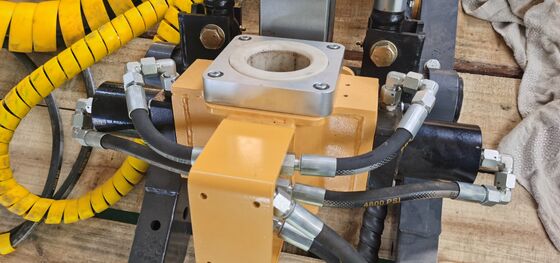

2. The clamp has a pressure loss protection function, which is safe, reliable, and responds quickly to prevent accidental detachment.
3. The unique adjustable sliding gap function of the power head keeps the close contact between the mast rail surface and the carriage, eliminates drilling vibration, and ensures drilling coaxiality.
![]()
Customer Visting
![]()
Company Profile
![]()
Glorytek Industry ( Beijing) Co., Ltd is a professional manufacturer and supplier of drilling equipment and drilling tools with over 20 years experience. We are supported and assisted by highly experienced R & D team and engineers that enable us to complete all the assigned projects successfully as per clients’ requirements.
Glorytek Drill is one of the most important member of “Sundrill Corporation”.Our factory covers an area of 250,000 square meter, construction area is about 150,000 square meter, having machining machinery, CNC processing center, friction welding machine, testing equipment etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries around the world.
FAQ
Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.
Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.
Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).
Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
